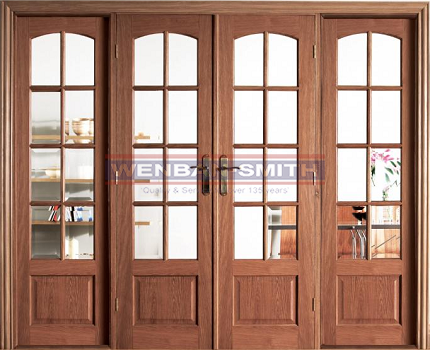

2031mm High x 2478mm Wide (561280)
| Component | Dimensions (mm) | No. of Pieces | |
| 1 | Centre Doors 8L/1P Curved Head | 35 x 579 x 1981 | 2 |
| 2 | Centre Doors 8L/1P Curved Head | 35 x 579 x 1981 | 2 |
| 3 | Frame Set Lining Head | 35 x 133 x 2478 | 1 |
| 4 | Frame Set Lining Jamb ------------------------------------ Frame Set Lining Jamb | 35 x 133 x 2006 ----------------------- 35 x 133 x 2006 | 1 ------------------------ 1 |
| 5 | Centre Mullion ------------------------------------ Centre Mullion | 35 x 133 x 2006 ----------------------- 35 x 133 x 2006 | 1 ------------------------ 1 |
| 6 | Door Stop ------------------------------------ Door Stop | 13 x 45 x 1176 | 1 ------------------------ 2 |
| 7 | Side Light Bead ------------------------------------ Side Light Bead | 13 x 45 x 581 ----------------------- 13 x 45 x 1974 | 8 ------------------------ 8 |
| 8 | "T" Stop | 30 x 45 x 1981 | 1 |
| 9 | Bottom Rail ------------------------------------ Bottom Rail | 22 x 133 x 581 ---------------------- 22 x 133 x 581 | 1 ------------------------ 1 |
